Description
Product Description

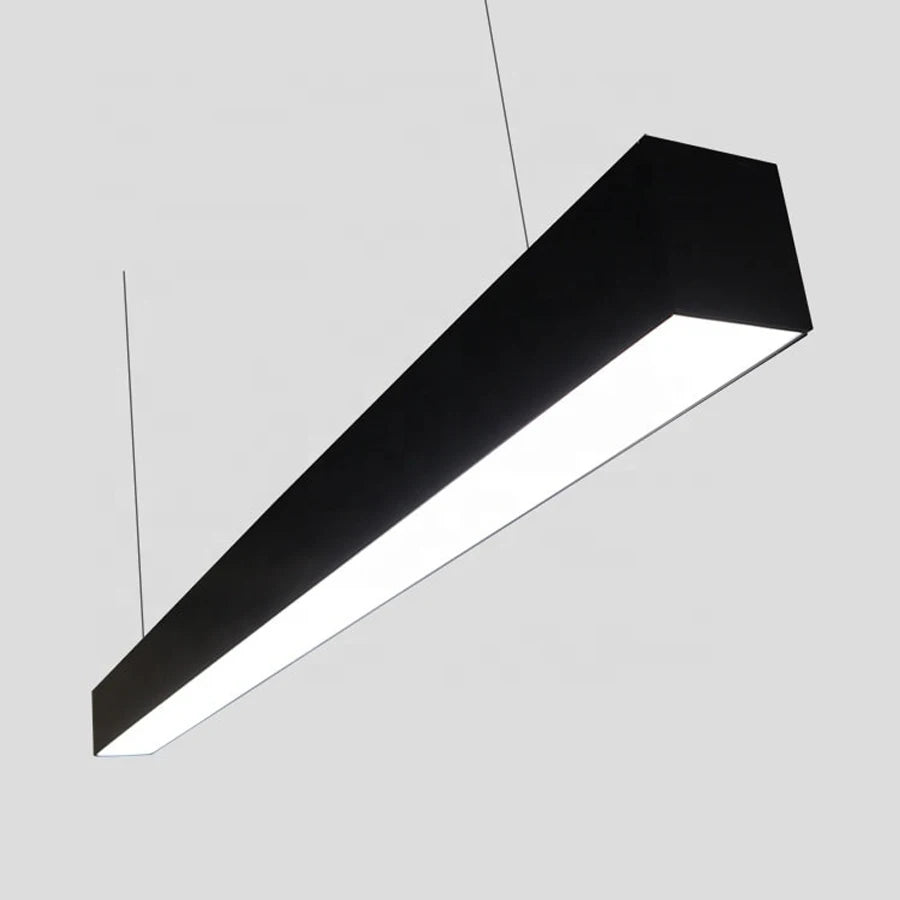

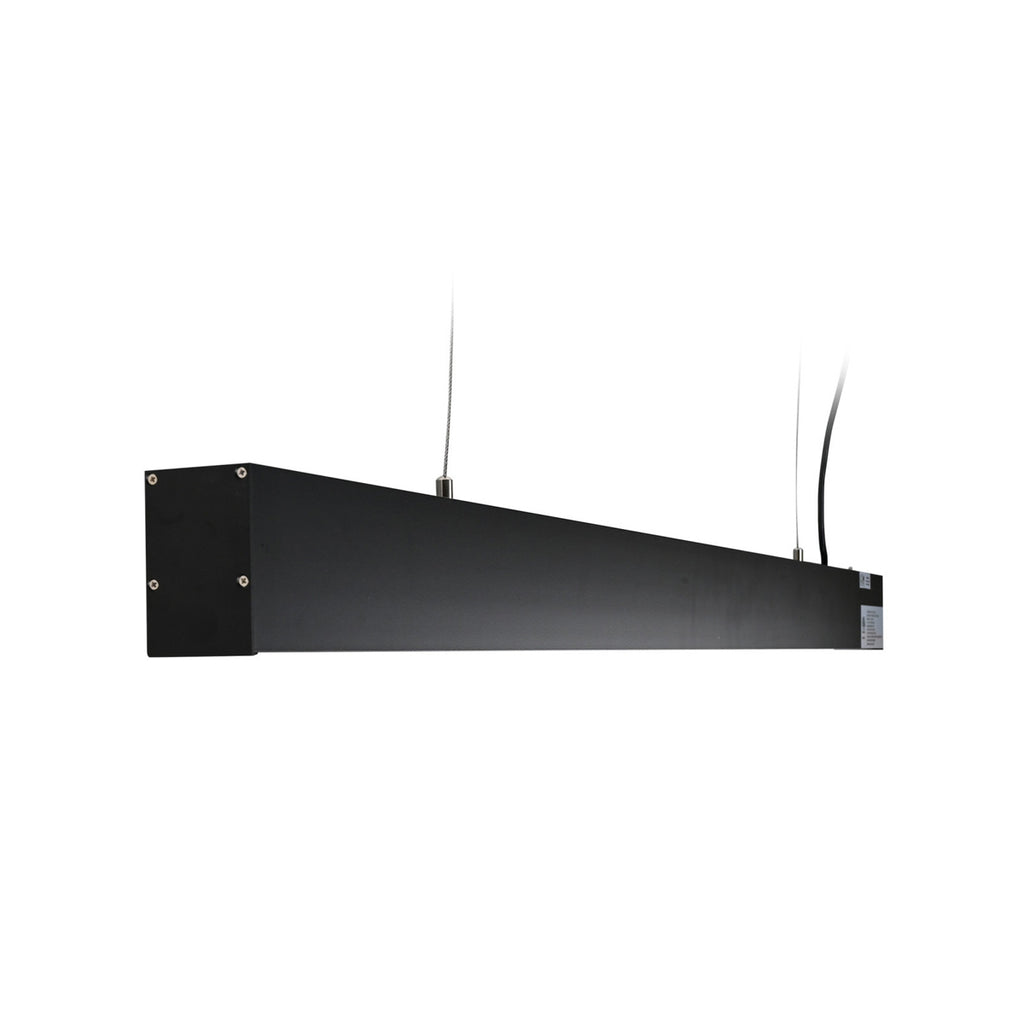

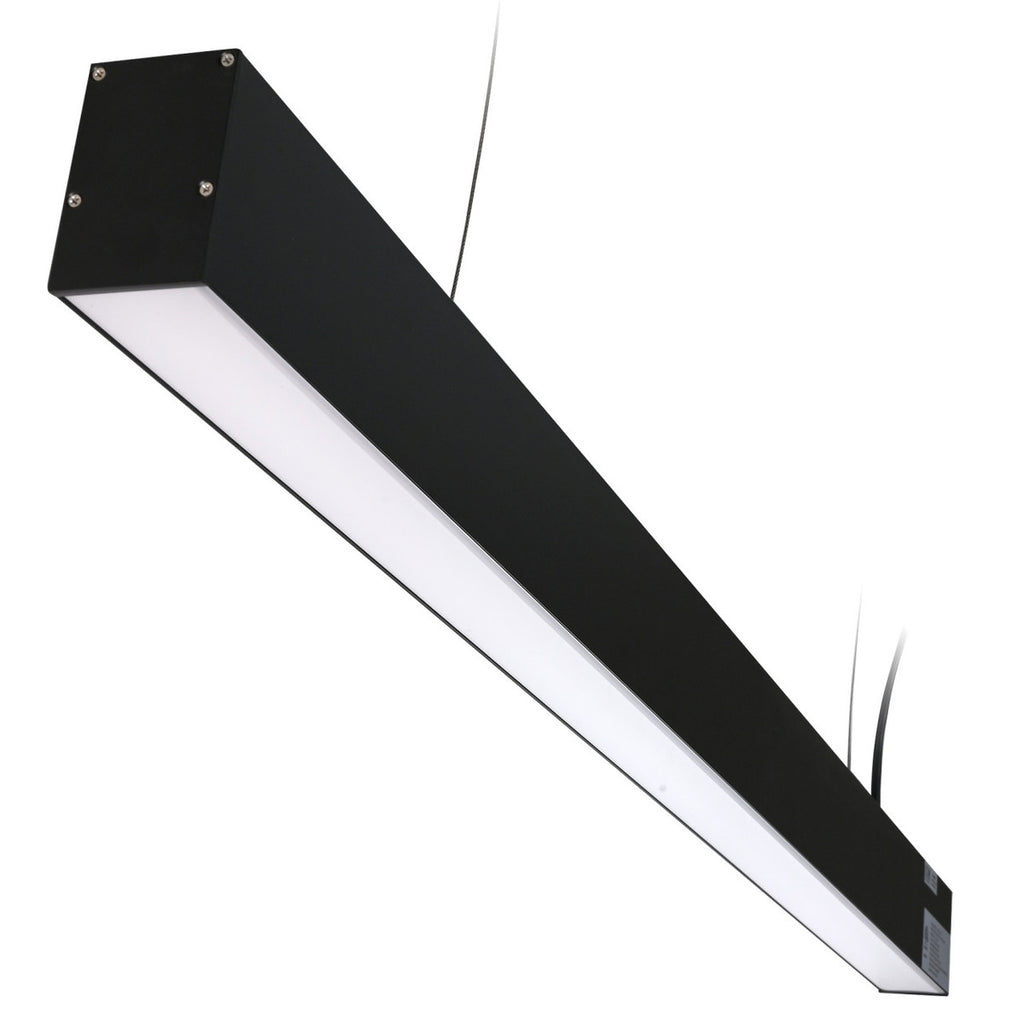

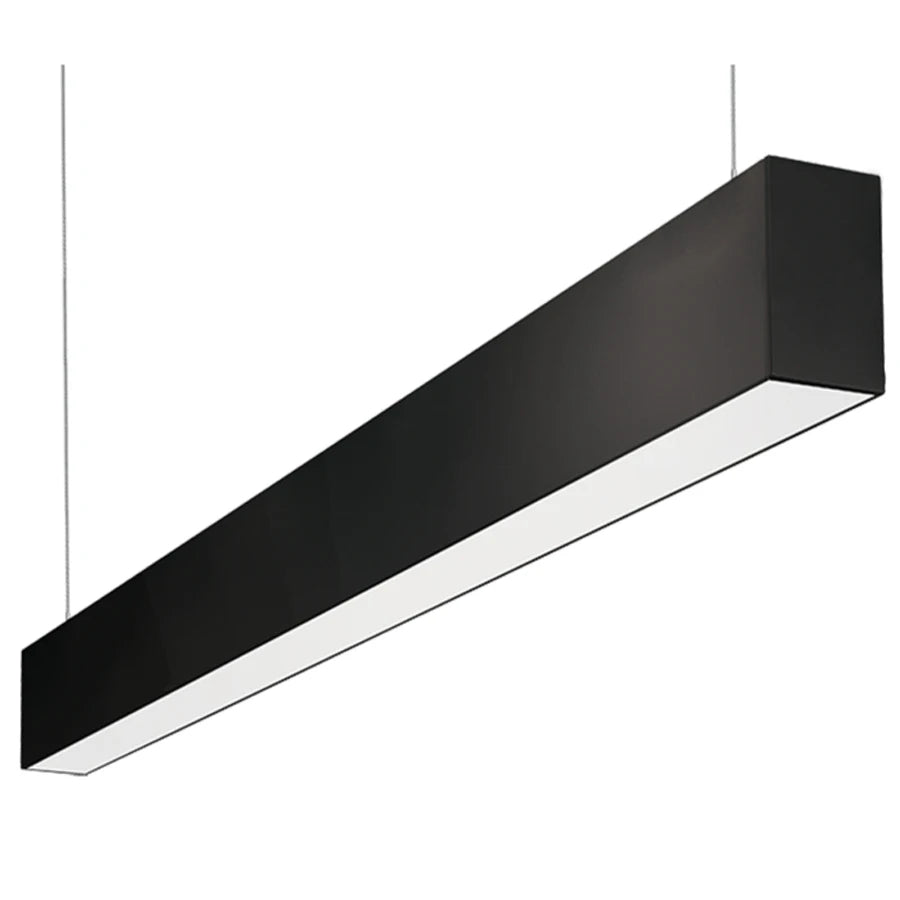

The LED Linear Profile Light series is a rugged, reliable, versatile and durablecompact LED Strip Light. The specially designed optical systemcan effectively reduce glare and provide comfortable iluminationeffect. The use of reliable and durable Roll sheet metal bottomshell contributes to longer service life and increased efficiency.The SP05 also offers field-adjustable lumen output in threegears: 100%, 80%, 60%; CCT options are available in threecolor temperatures, 3500K, 4000K and 5000K.Both are operated by a simple DIP switch. This will significantly reduce thecustomer's SKU and thus achieve a budget-friendly purpose.
Specification
|
Item
|
LED Linear Light
|
|
Color Temperature(CCT)
|
3500K 4000K 5000K Tunable
|
|
Lamp Luminous Efficiency(lm/w)
|
100-110lm/W
|
|
Warranty(Year)
|
5-Year
|
|
Color Rendering Index(Ra)
|
80 / 90
|
|
Color
|
Black, White, Silver
|
|
Model Number
|
30/40/50W-4FT-3CCT-BK/WT
|
|
Beam Angle(°)
|
120
|
|
Input Voltage(V)
|
100-277V, 220-240V
|
|
Light Source
|
SMD2835
|
|
Lamp Body Material
|
Aluminum Profile
|
|
IP Rating
|
IP20
|
|
Application
|
warehouse,Sports Stadiums, Workshop
|
|
Support Dimmer
|
Yes
|
|
Profile Size
|
W70*H80mm
|
|
Length
|
4FT
|
|
Shell Color
|
Black/White
|
|
Power
|
30W 40W 50W Selectable
|
|
Dimmable
|
0-10V, DALI, Triac
|
|
Model No.
|
Dimension
|
Power
|
CCT
|
Shell Color
|
|
30/40/50W-4FT-3CCT-BK
|
48’’x2.75’’x3.14’’ |
30W 40W 50W Selectable
|
3500K 4000K 5000K Tunable
|
Black White Silver
|
|
30/40/50W-4FT-3CCT-WT
|
48’’x2.75’’x3.14’’ |
30W 40W 50W Selectable
|
3500K 4000K 5000K Tunable
|
Black White Silver
|
Shell Color Optoins:

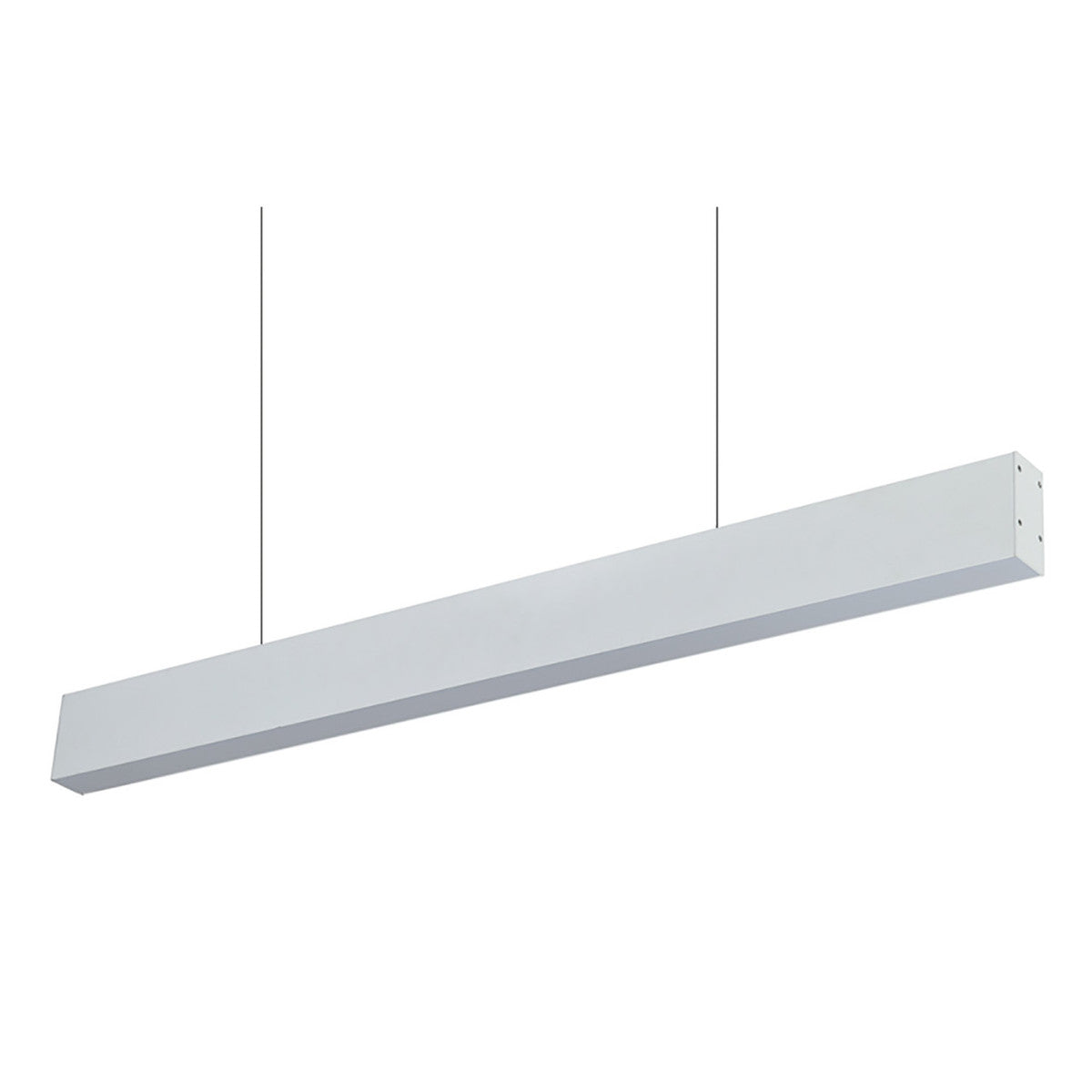

White, Black, Silver are standard colors;
RAL no. colors can be customized.
Application

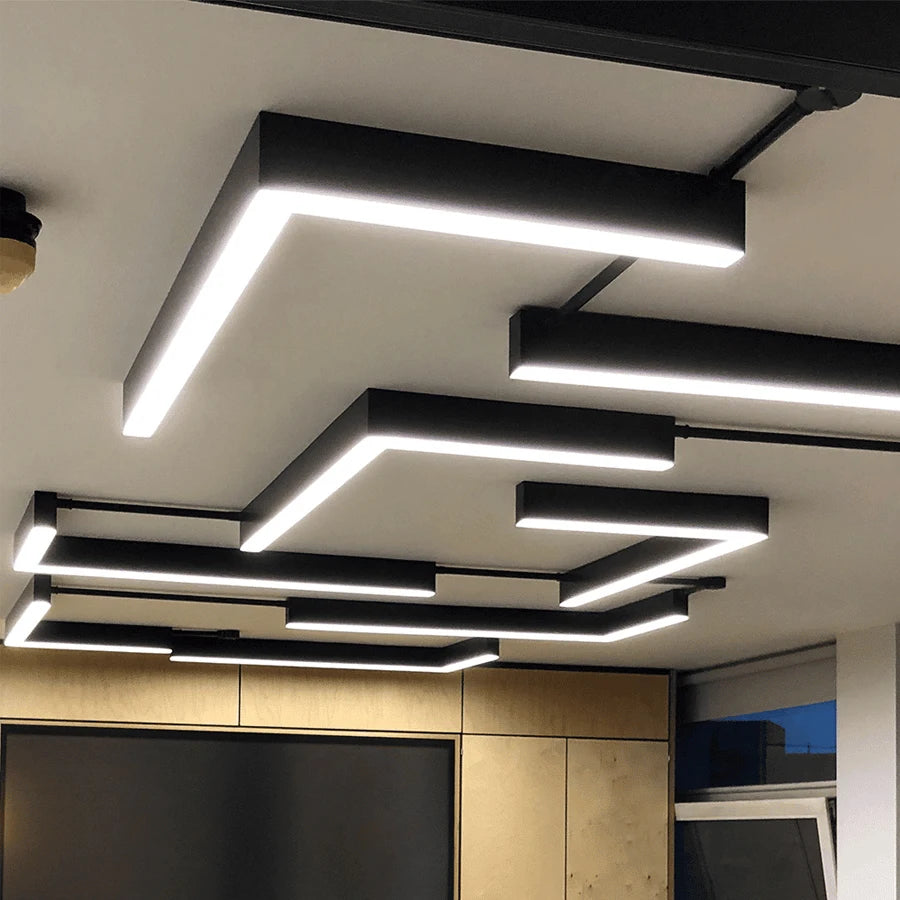

Widely application for office, school, hotel, bank, hospital, commercial building and etc.
Installation

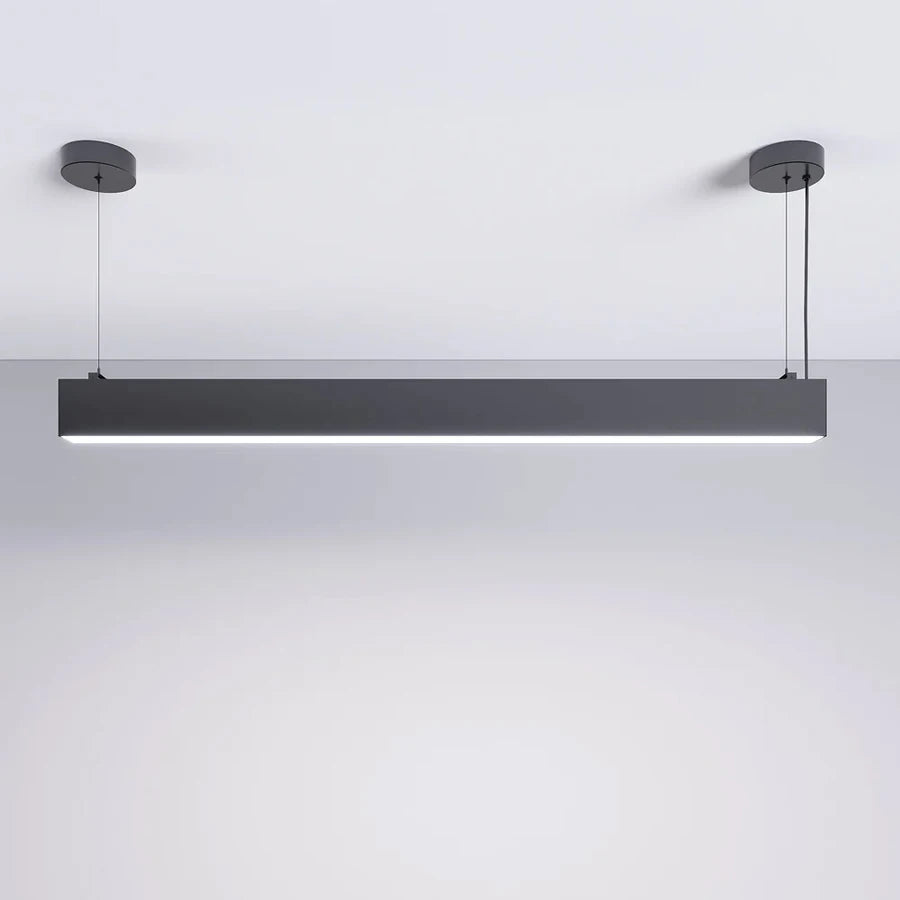

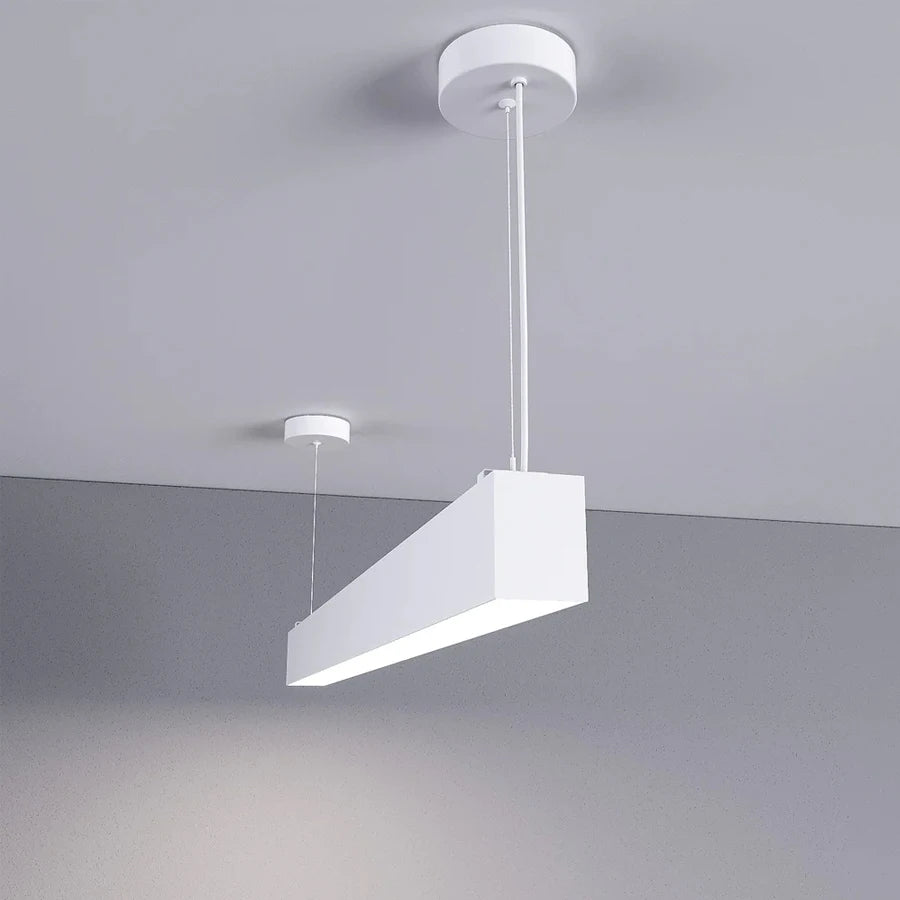

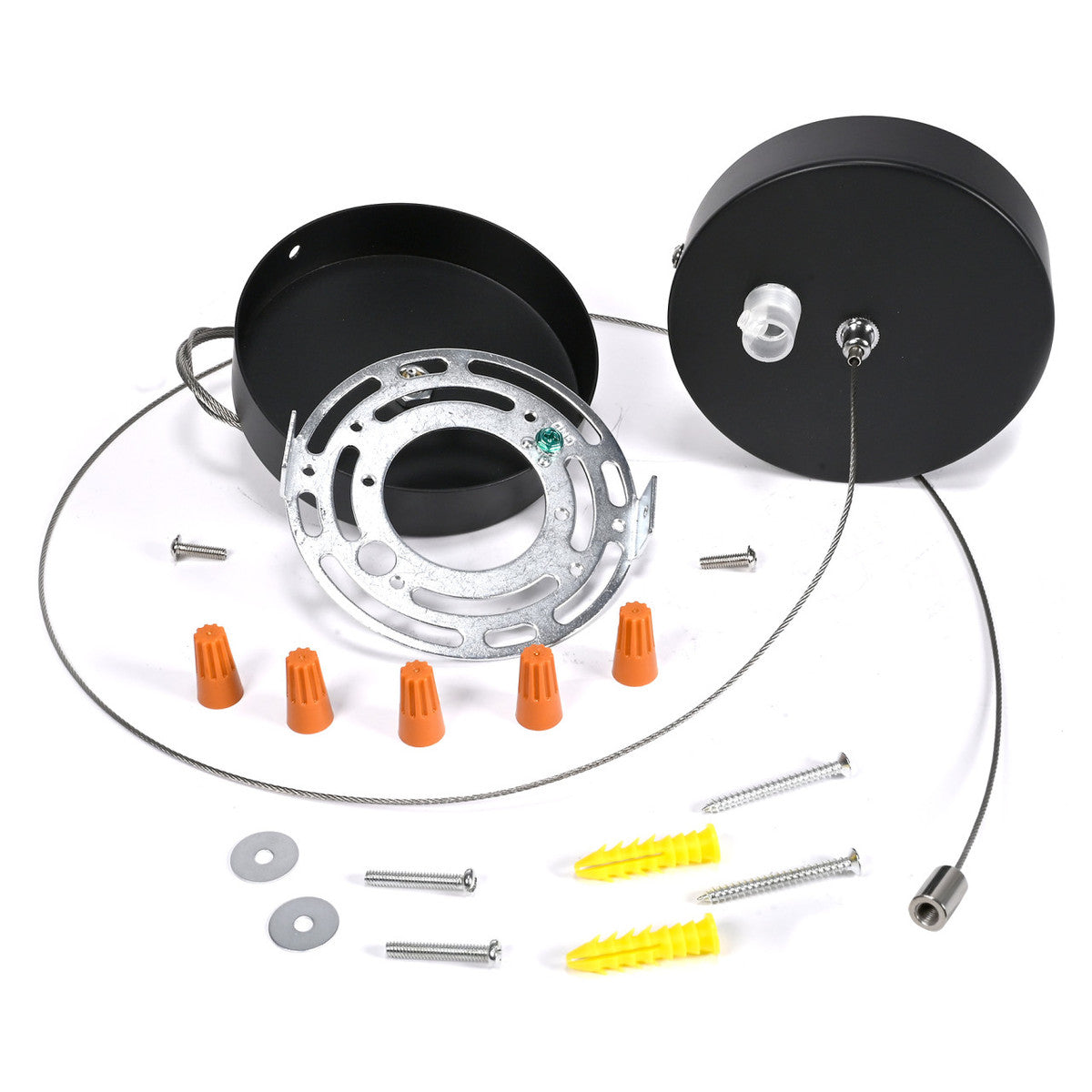

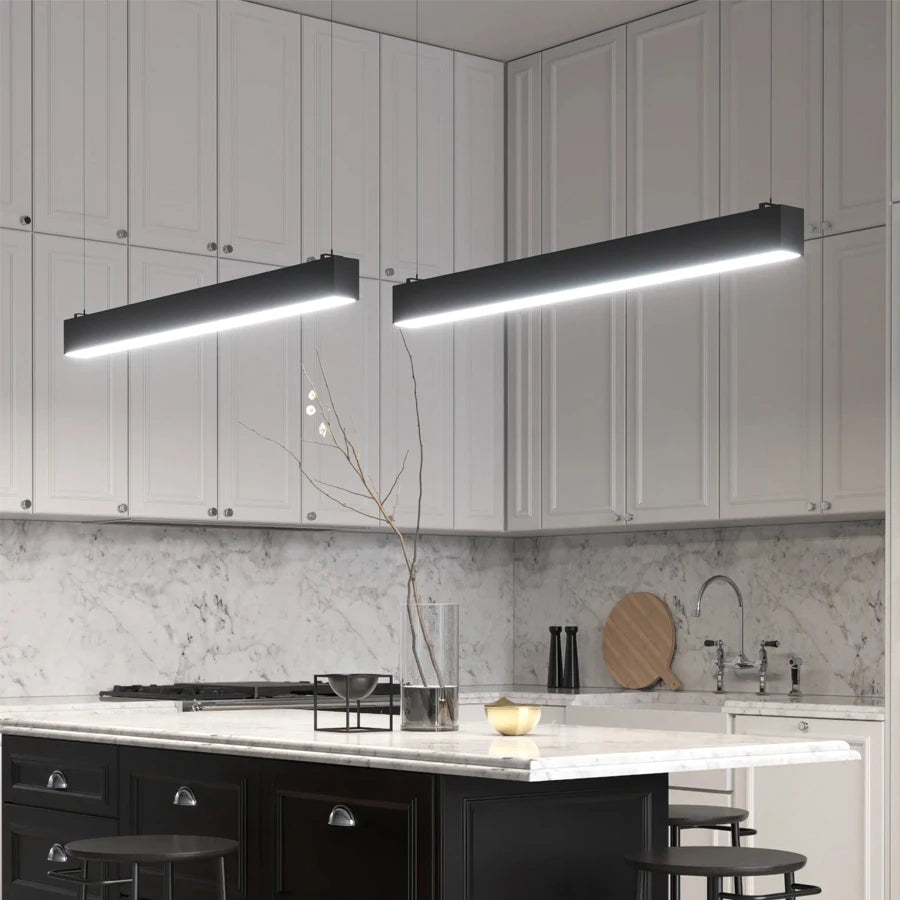

Suspended, Ceiling mounted, Wall mounted, Recessed.
